L E V E L     T R A N S D U C E R S

Pressure and Ultrasonic Level Transmitters


SUBMERSIBLE LEVEL TRANSDUCER
(MERCOID)

The Model PBLT Submersible Level Transducer is specially designed for years of trouble free service in the harshest applications. The PBLT measures the height of liquid above itís position in a tank or sump. The transmitter consists of a bonded foil, strain gauge, sensing element, encased in a 316 stainless steel housing. The transmitter is perfect for wastewater and sewage lift stations applications. A large diaphragm seal is non-clogging and resistant to floating solids. The unit has built in lightning and surge protection and is rated for Intrinsically Safe applications.

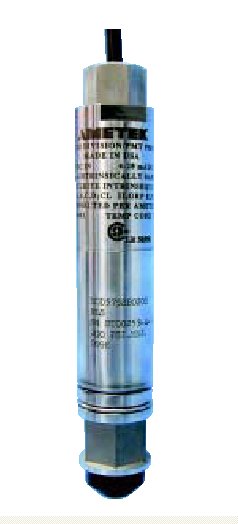

SUBMERSIBLE LEVEL TRANSDUCER
(AMETEK)

The Model 575 Submersible Level Transducer is specially designed to provide the convenience of direct submergence in most liquids for quick, accurate and reliable level measurement. The simple design and rugged construction of this solid state instrument provide long lasting service with virtually no maintenance. The Transmitter indicates level by continuously measuring pressure via its sensing element, an ion implanted silicon chip with a integral Wheatstone Bridge circuit.

GAGE PRESSURE TRANSMITTER
(FOXBORO)

The 1GP10 I/A Series Pressure Transmitter belongs to a family of d/p Cell, gauge transmitters that use field-proven silicon strain gauge sensors. Simple sensor packaging uses very few parts to achieve exceptionally high reliability. The transmitter provides the ability to re-range to new calibrated ranges, using the LCD built in indicator with on-board pushbuttons, without the need to apply calibration pressure. The housing features an explosion proof, weatherproof construction for direct mounting to the process connection.


SMART PRESSURE TRANSDUCER
(ROSEMOUNT)

The Model 1151GP Smart Pressure Transmitter sets the industry standard for providing pressure measurements in gage, absolute, and liquid level applications. The digital technology featured in this transmitter provides industry leading performance, reliability, and easy interface between the field and the control room. Improved dynamic response provides better tracking of varying process inputs. The housing features an explosion-proof, weatherproof construction with separate compartments for electronics and wiring connections.

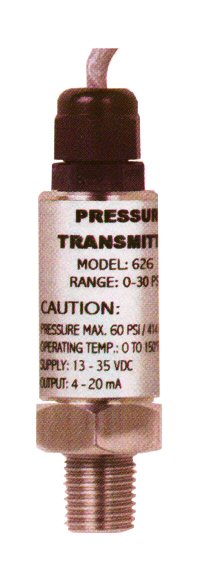

LEVEL TRANSDUCER
(DWYER)

The Model 626 Level Transducer converts a single positive pressure into a standard 4-20ma output signal using a highly precise piezo-resistive sensor. The Model 626 can be used to accurately measure air, gases or compatible liquids. Accuracy is +/- 0.25% of full scale. The Model 626 is designed for industrial environments and is housed in a compact, rugged, Nema 4X stainless steel general purpose housing.

ULTRASONIC LEVEL SENSOR
(EMS)

The Model SR12 Ultrasonic Level Sensor provides distance or level ranging from 1 to 12 feet, and SR24 level ranging from 2 to 24 feet. The sensor can be used in any type of tank or sump, and provide non-contact process level of water or wastewater in the harshest environment. The Ultrasonic Sensor is filled and sealed with epoxy to survive rugged applications. The sensor includes an LED to aid in installation to indicate target detection.
